wanhao duplicator i3 3d printer
| Projects infobox | |
|---|---|
| Image | ![ASCII
ALCSIIF5�]���� T �M Sl 7���v O��4 | J�_��7� �v �n �v �n �
:
��v0n�� ��n�v�n�v�
�� �nA� � ��
� � �� ALCE FAFA48 szFAFA
� � � Y� = X�N X"$� e6�� Y. (" ]" e �� i�� np� d�� �^��� � d ���lw�0� FAFA ���� �N ����� ����r ����� ���Ή����� ����' & ���� � ���� & & ���� C���� � D � ���� ����& PCL1323073...](/lib/exe/detail.php?id=wanhao_duplicator_i3_3d_printer&media=archive:first_production_printer_rack.jpg "ASCII
ALCSIIF5�]���� T �M Sl 7���v O��4 | J�_��7� �v �n �v �n �
:
��v0n�� ��n�v�n�v�
�� �nA� � ��
� � �� ALCE FAFA48 szFAFA
� � � Y� = X�N X\"$� e6�� Y. (\" ]\" e �� i�� np� d�� �^��� � d ���lw�0� FAFA ���� �N ����� ����r ����� ���Ή����� ����' & ���� � ���� & & ���� C���� � D � ���� ����& PCL1323073...") |
| designers | |
| date | 2019 |
| vitamins | |
| materials | |
| transformations | |
| lifecycles | |
| tools | Wrenches |
| parts | Frames, Nuts, Bolts, End caps, Plates |
| techniques | Tri joints, Shelf joints |
| git | |
| files | |
| suppliers | |

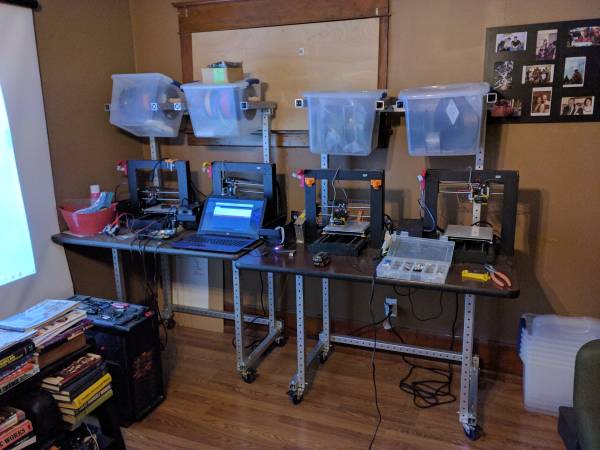

[R1] maintains four Wanhao Duplicator i3 3D printers for production FDM fabrication. Each printer has been upgraded with a controller and installed on a printer cart
ReDuplicator Upgrade
| Part | Description | Quantity |
|---|---|---|
| Stepper adapter x4 | 4 wire JST-XH male ↔ 2x male JST-XH adapter | 4 |
| Jumper wire | 40 wires each m/m, m/f, f/f | 10 |
| 3030 Extrusion 355mm | Z Axis HFSLB6-3030-355 | 2 |
| 3030 Extrusion 350mm | Y Axis HFSLB6-3030-350 | 2 |
| 3030 Extrusion 380mm | X Axis Tower HFSLB6-3030-380 | 2 |
| 3030 Extrusion 258mm | X Axis Base HFSLB6-3030-258 | 2 |
| 30x30x35 Corner Brackets | Tabbed on SINGLE Side only HBLFSNB6 | 14 |
| Alluminium Flat bracket | 4 mount holes HPTLS6 | 8 |
| LM8UU Bearings | Std 8mm 15mm long bearings LMU8 | 4 |
| M5 12mm | Button Head Screw M5 | 70 |
| M5 16mm | Button Head Screw M5 | 10 |
| M5 T-Nuts | 3030 T-Nuts - PACK-HNTAJ6-5 | 80 |
| M5 20-25mm | Low Profile Button head (less than 4.2mm) | 1 |
| M5 30-35mm | Screw M5 | 1 |
| M3 Heatserts Amazon | Brass heat inserts M3 thread M3-UHBRHESF | 22 |
| M3 4-8mm | Button Head Screw M3 | 8 |
| M3 12mm | Button Head Screw M3 | 6 |
| M3 16mm | Button Head Screw M3 | 6 |
| M3 30mm | Screw M3 | 3 |
| M3 6-8mm | Countersunk M3 | 4 |
| M3 6-12mm | Countersunk M3 | 8 |
| M5 Nylock | Nuts for Idlers | 2 |
| M3 Nylock | Nut for part cooling and heat sert substitute | 1 - 15 |
| M5 Smooth Idler Pulley | (Optional) 9mm wide replacement | 2 |
| M5 Fibrous Washers | For idler Pulleys | 3 - 10 |
| GT2 Belt | 6mm belt | 1m |
| 50mm Blower | Part Cooling | 1 |
| M3n Square nut | X motor tensioner (optional) | 2 |
