tractors
| Projects infobox | |
|---|---|
| Image |  |
| designers | |
| date | |
| vitamins | |
| materials | |
| transformations | |
| lifecycles | |
| tools | Wrenches, Cutters |
| parts | Frames, Nuts, Bolts, Plates, End caps, Casters, Batteries, Controllers, Wheels, Wheel hubs, Tires, Keyed shafts, Keys, Optional: Hydraulic valves, Hydraulic hoses, Hydraulic valves, Hydraulic power units, Hydraulic pistons, Hydraulic motors, Hydraulic couplers, Lights, Motors, Wires, Electrical connectors, Linear actuators, Solar panels |
| techniques | Tri joints, Three point hitches |
| files | |
| suppliers | |
| git | |
Introduction
A tractor is an engineering vehicle specifically designed to deliver a high tractive effort (or torque) at slow speeds, for the purposes of hauling a trailer or machinery such as that used in agriculture, mining or construction. Most commonly, the term is used to describe a farm vehicle that provides the power and traction to mechanize agricultural tasks, especially (and originally) tillage, but nowadays a great variety of tasks. Agricultural implements may be towed behind or mounted on the tractor, and the tractor may also provide a source of power if the implement is mechanised.
Challenges
To do
- Purchase 3x gearboxes, motors,
spindle kits - Purchase 4x linear actuators
- Purchase 8x mounting pins for linear actuators
- Purchase truck box
- Purchase 2x rear casters
- Draw / cut gearbox mounting plate
- Draw / cut linear actuator mounting plate
- Draw / cut arm pivot plate
- Draw / cut caster mounting plate
Approaches

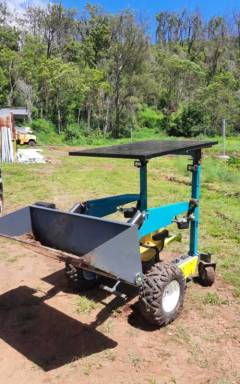

Light duty electric

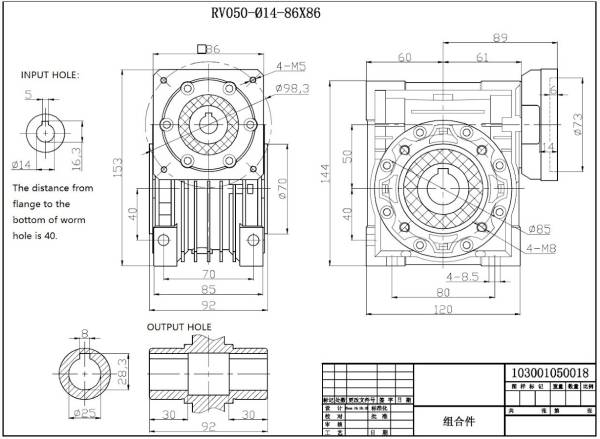

- MRV050 or NMRV050 worm gear reducer
- Gearbox mounting plate x 2
- Linear actuator mounting plate x 4 per actuator
- Arm pivot plate x 4 (can include linear actuator mounts)
Bobcat tracks
From scratch tracks
Medium duty electric-hydraulic
Medium duty gas-hydraulic
References
