axial bearings
| Parts infobox | |
|---|---|
| Image |  |
| designers | Timothy Schmidt |
| date | 2019 |
| vitamins | |
| materials | |
| transformations | |
| lifecycles | |
| tools | 3D printers |
| parts | |
| techniques | |
| files | |
| git | |
| suppliers | |
Introduction

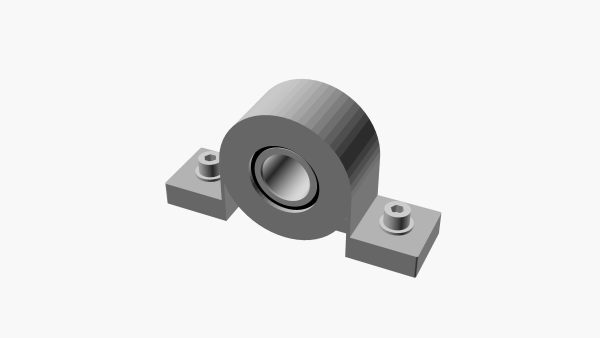

A pillow block bearing (or plummer block) is a pedestal used to provide support for a rotating shaft with the help of compatible bearings & various accessories. The assembly consists of a mounting block which houses a bearing. The block is mounted to a foundation and a shaft is inserted allowing the inner part of the bearing / shaft to rotate. The inside of the bearing is typically 0.001 inches (0.025 mm) larger than the shaft to ensure a tight fit. Set screws, locking collars, or set collars are commonly used to secure the shaft.
Challenges
Approaches
References
