automated_drilling_machines

automated drilling machines

Projects infobox
Image eiffel_concept.jpg
designers Phil Jergenson, RJ Jergenson, Timothy Schmidt, supercool, Mikey, Rongomai, Tobias Grundtvig
date 2008
vitamins
materials
transformations
produces Frames
consumes Lumber, Aluminum extrusions, Square tube
waste Sawdust, Recyclable metals
tools Wrenches
parts Frames, Nuts, Bolts, Plates, End caps
techniques Shelf joints, Tri joints
files
git
suppliers

Category:Projects

Category:Manufacturing

Introduction

Frames can be manufactured by hand, with careful measurement and drilling. While meditative, this work is repetitive and laborious. Time studies of the hand production process using a drill press reveal that positioning the undrilled frame stock for precise drilling consumes the majority of effort. Automating the process in an affordable manner will reduce cost, increase availability, and free time for creative effort.

Challenges

Reducing cost and improving availability of frames requires decentralized manufacturing.

Approaches

A frame drill built from standardized and widely available industrial automation components allows anyone to source the parts they need anywhere to build more frame drills.

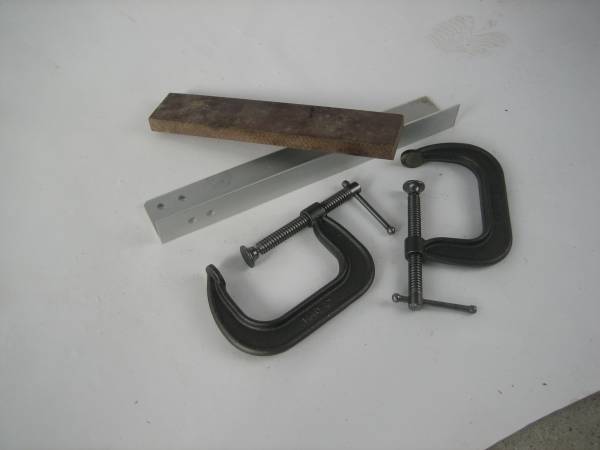

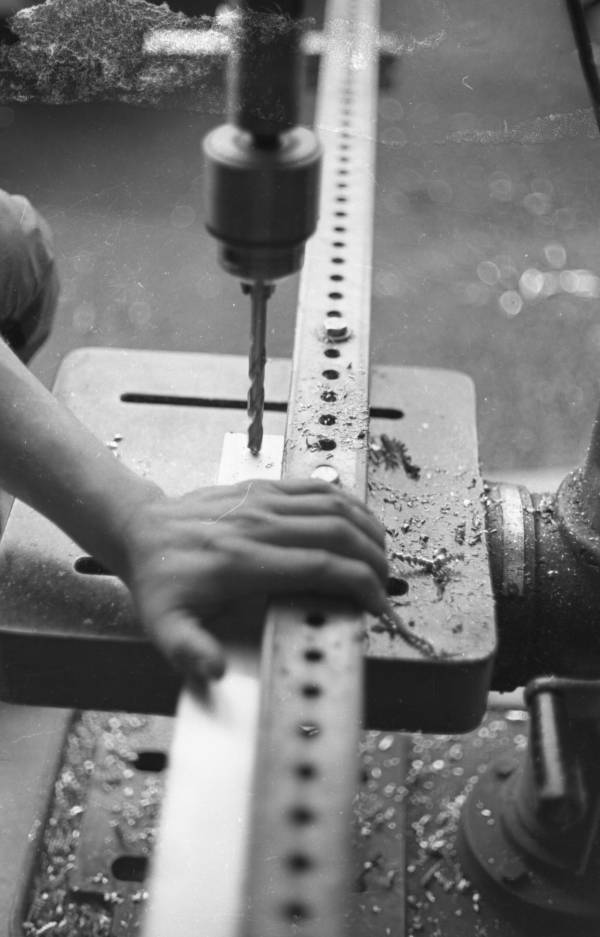

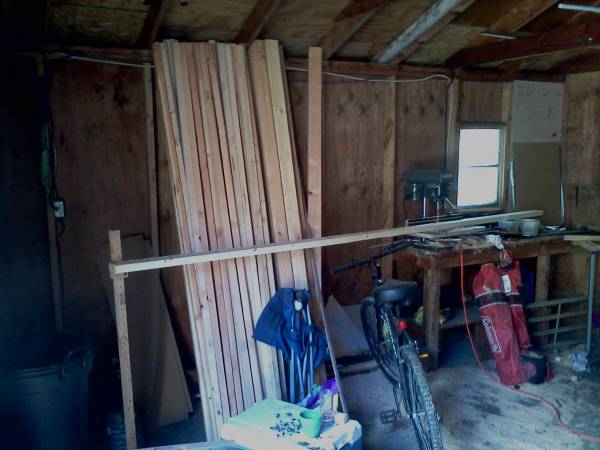

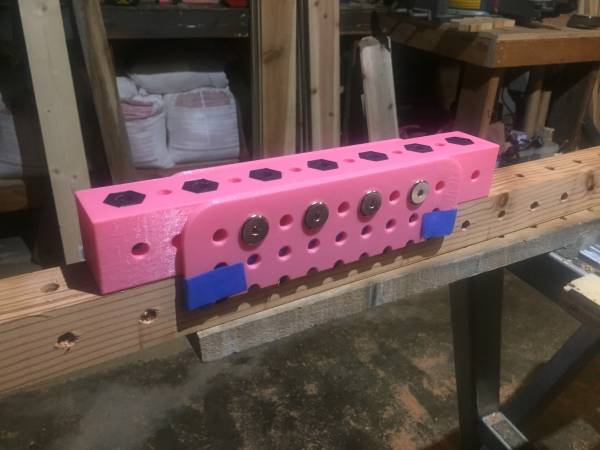

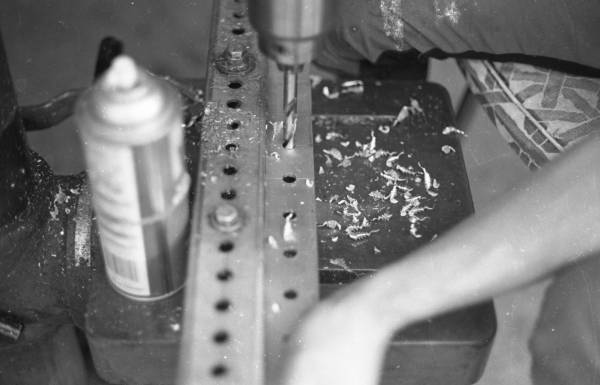

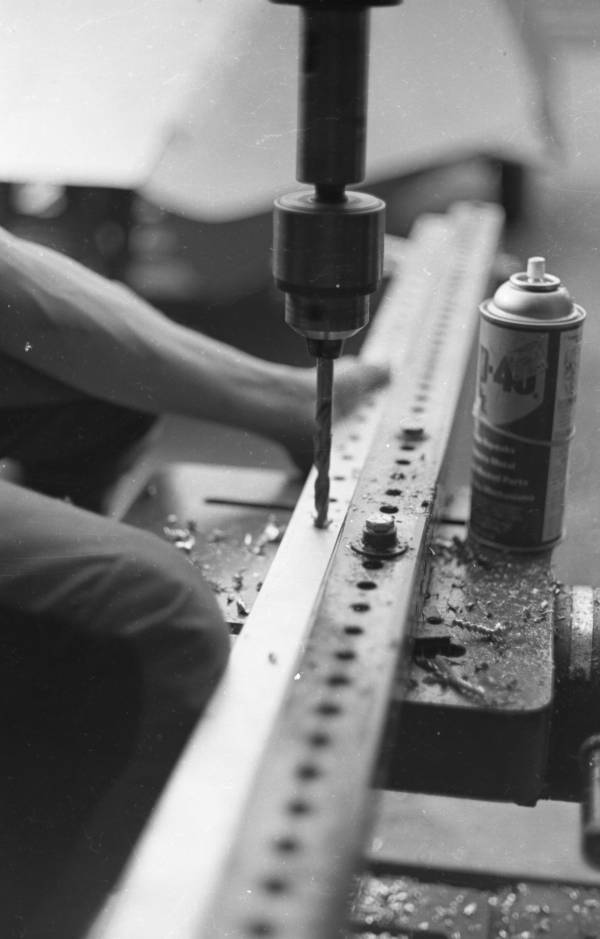

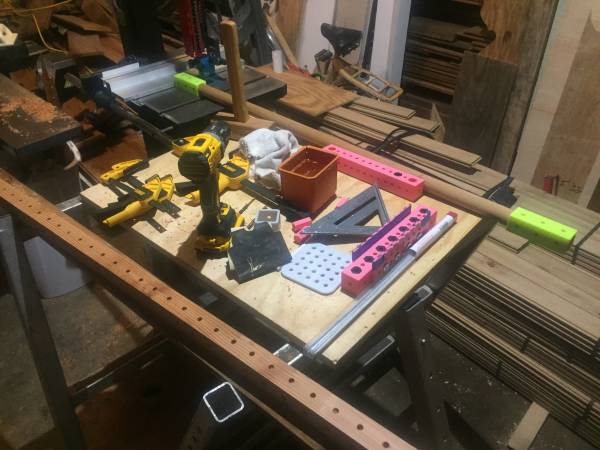

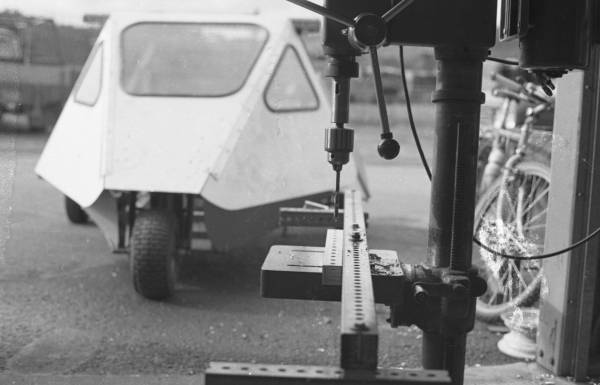

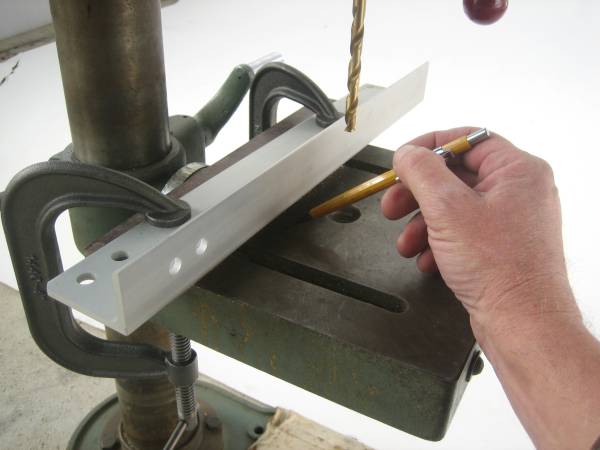

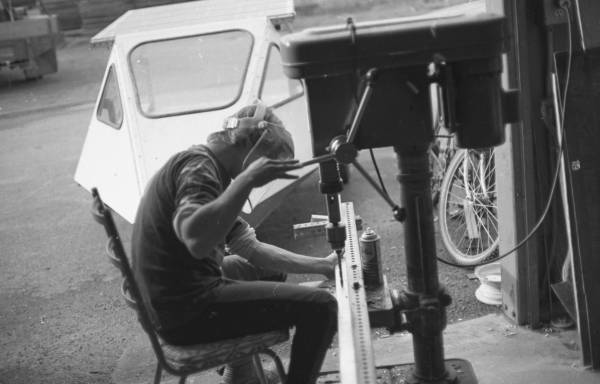

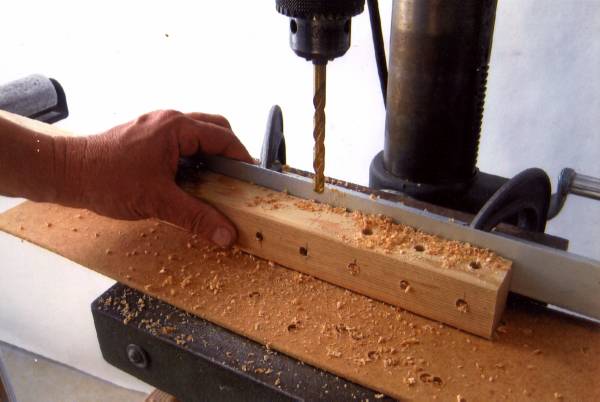

Drill guide

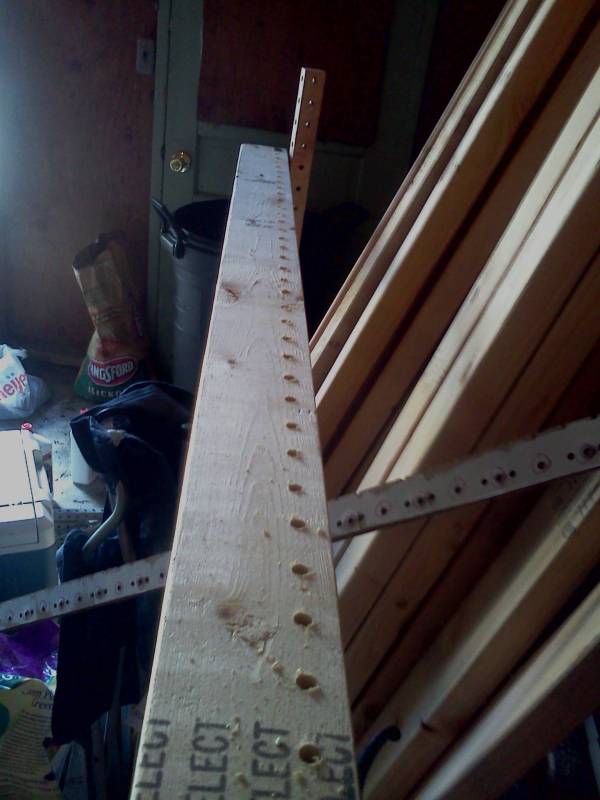

Gang drill

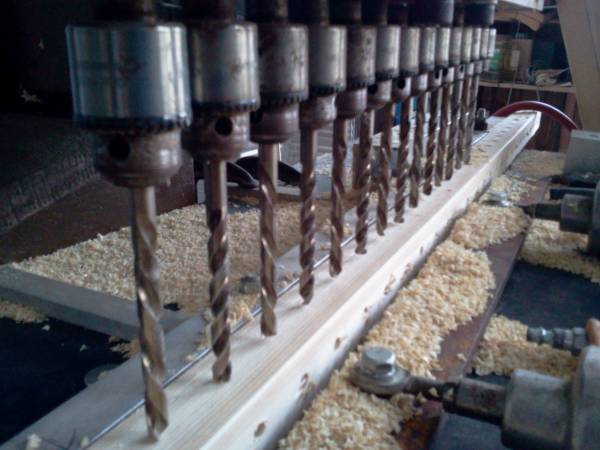

Our investment into production drilling has made us the leader in Grid Beam...

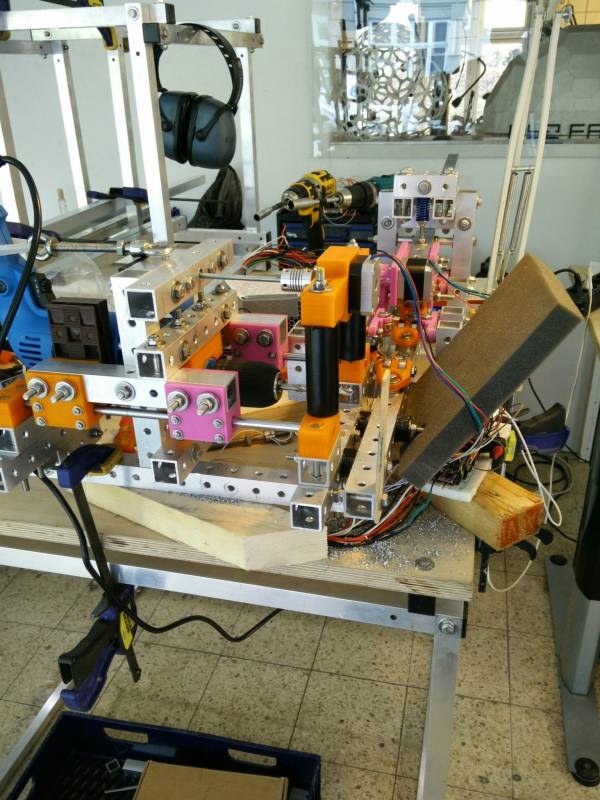

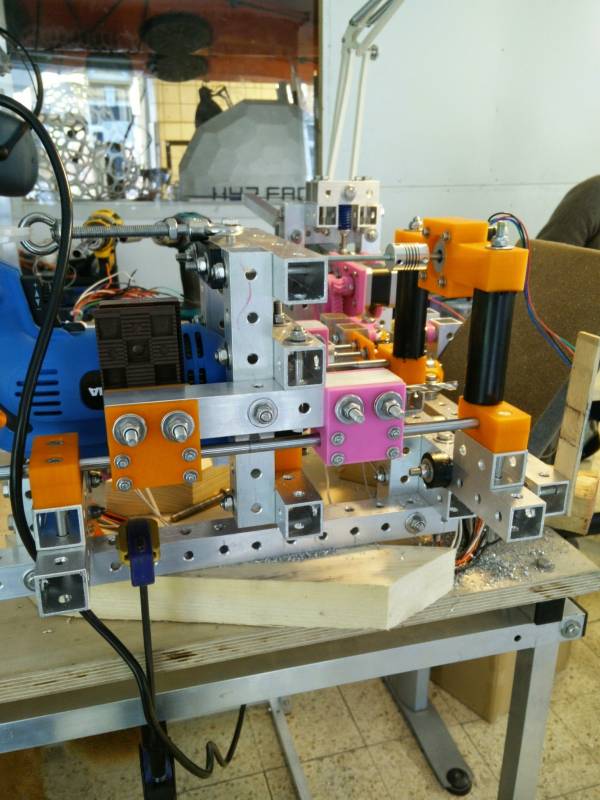

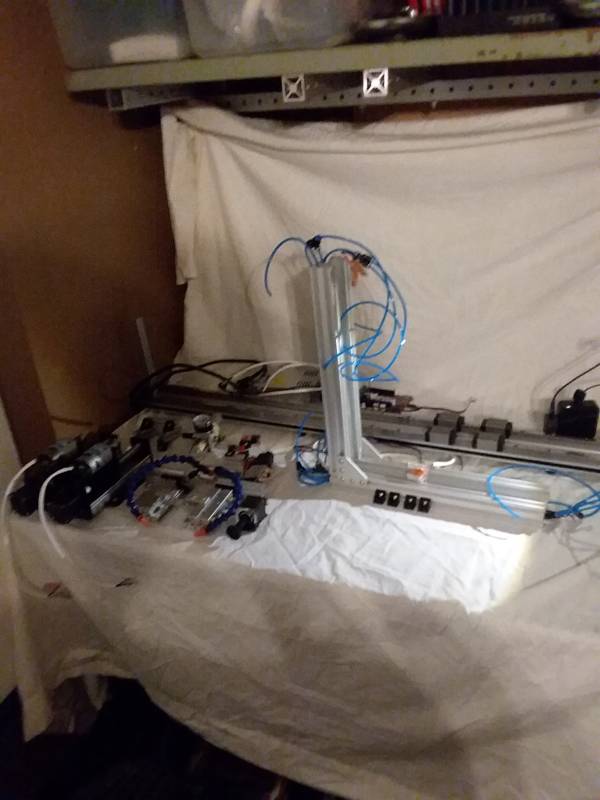

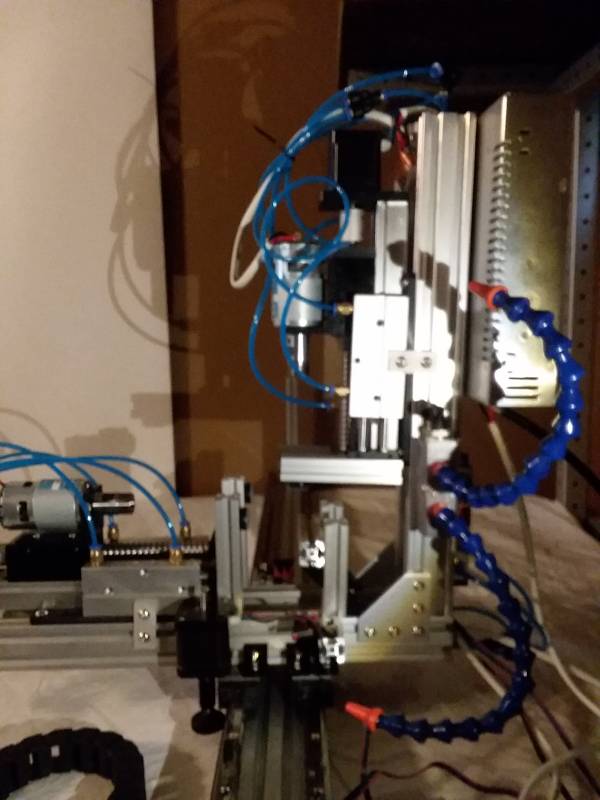

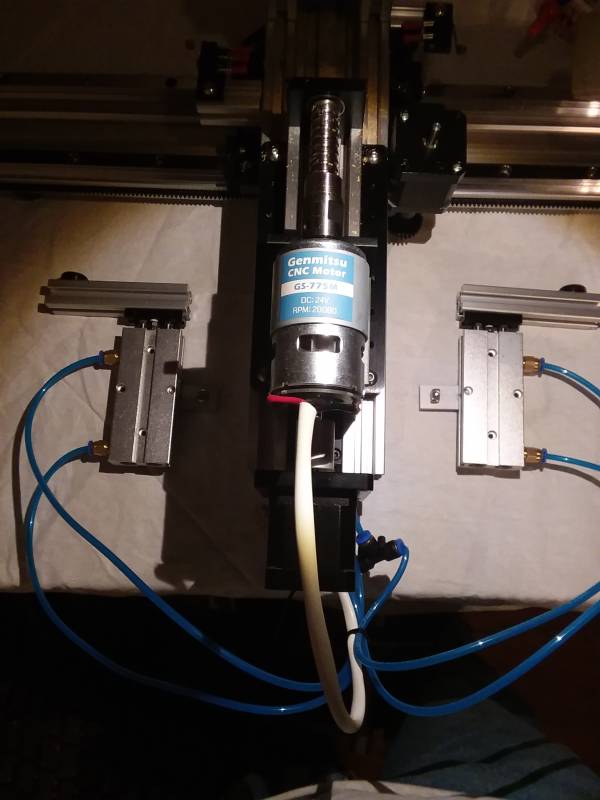

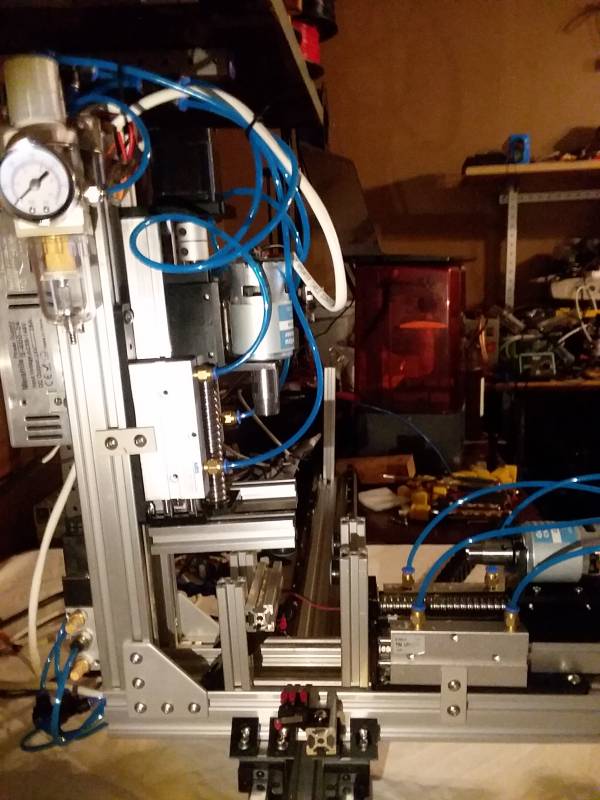

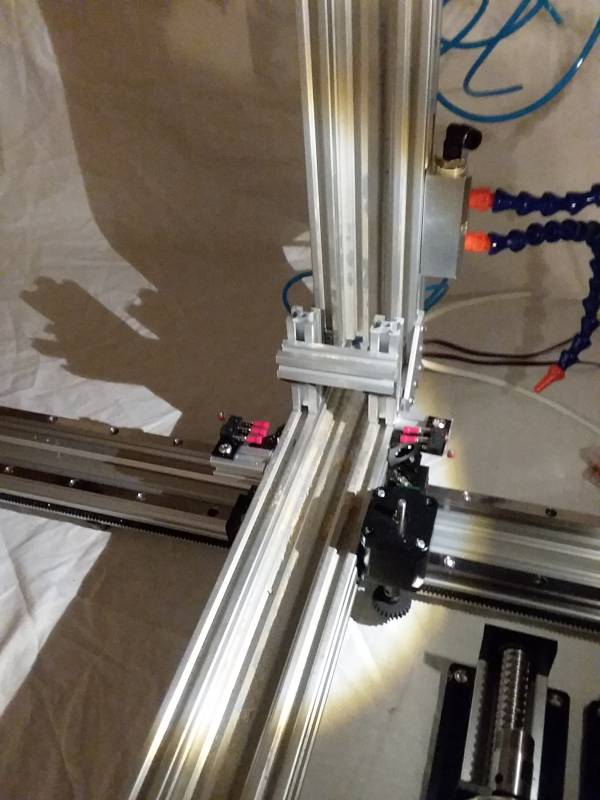

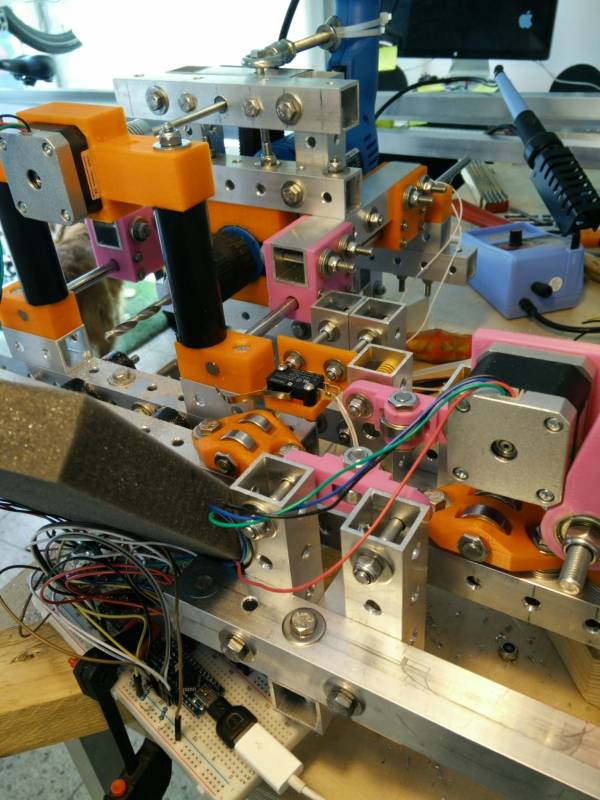

Dual gripper drill

This frame drill design makes use of two independently controlled and actuated industrial grippers to move and hold square stock for drilling on all four sides by independently actuated high speed spindles.

Watch video on YouTube

Parts

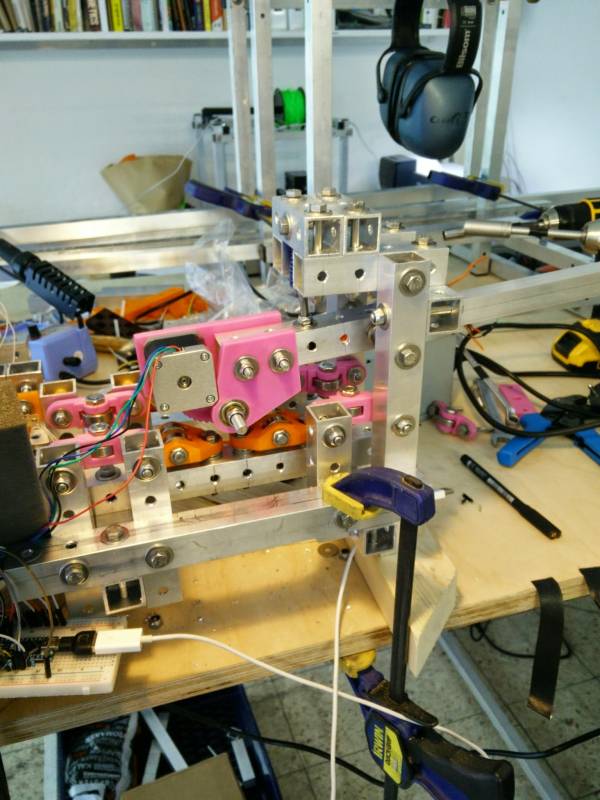

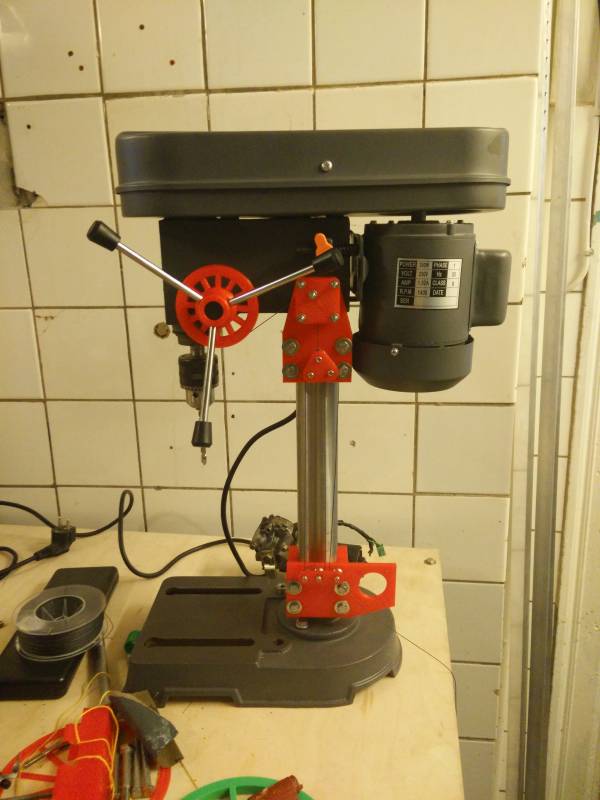

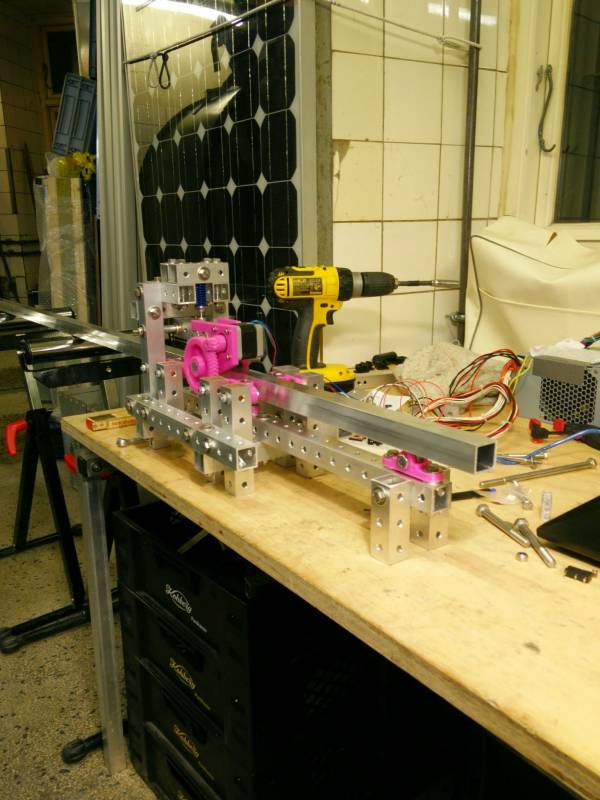

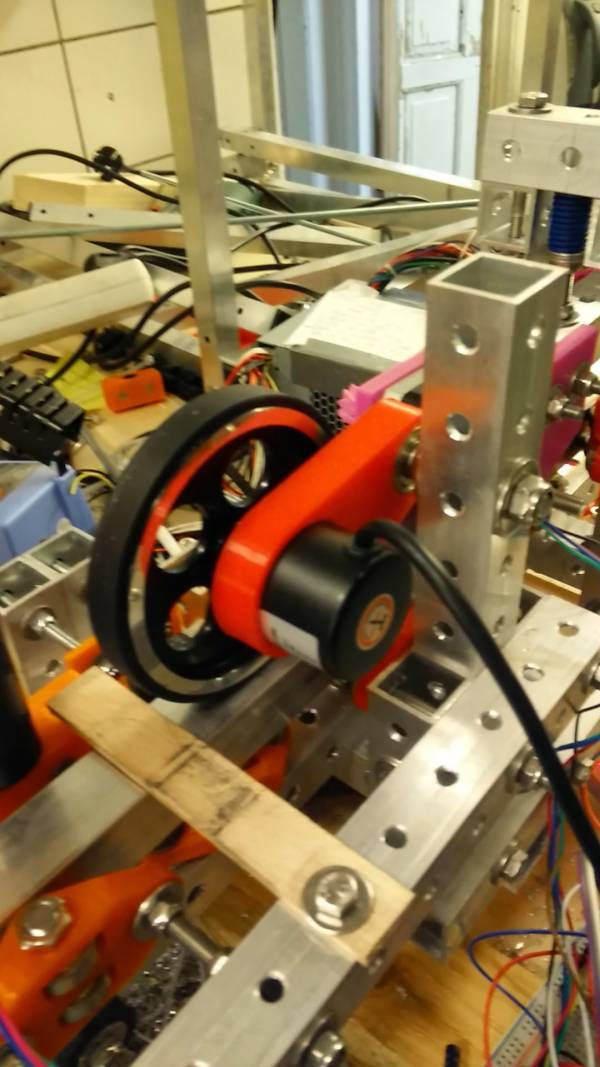

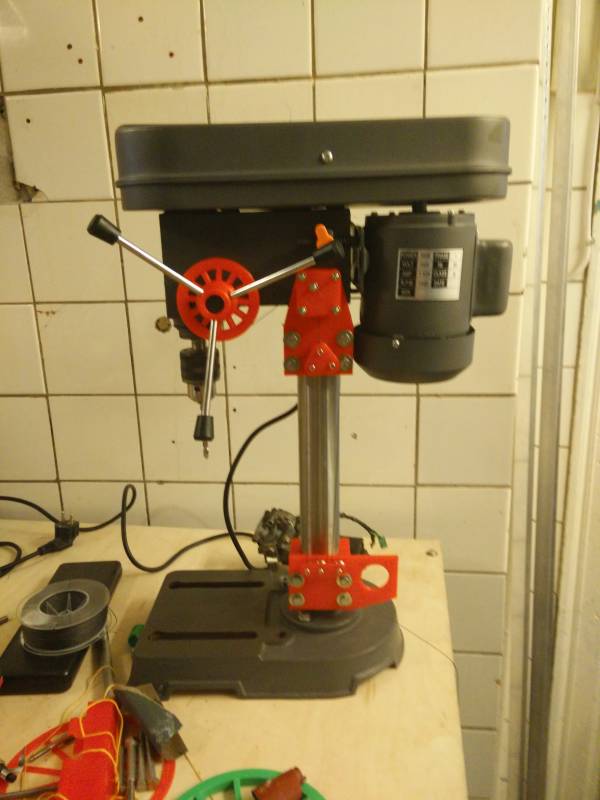

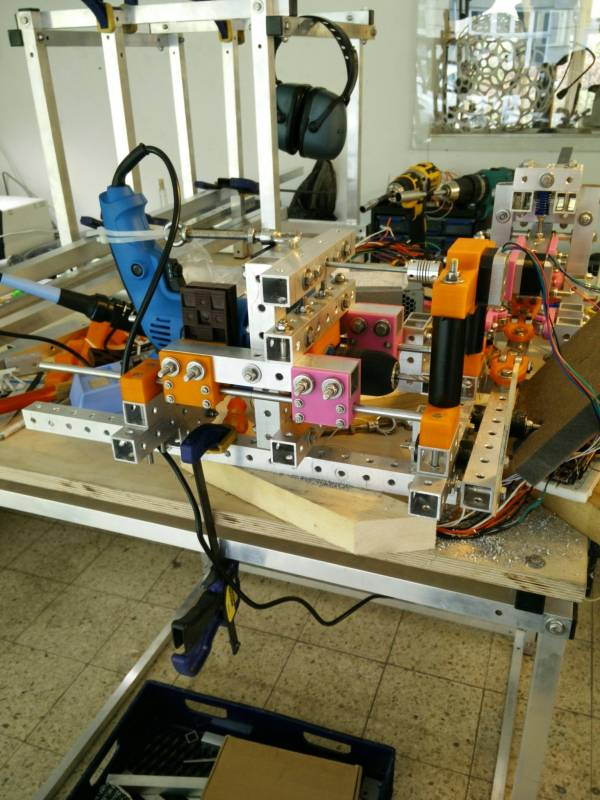

Perpendicular axis drill

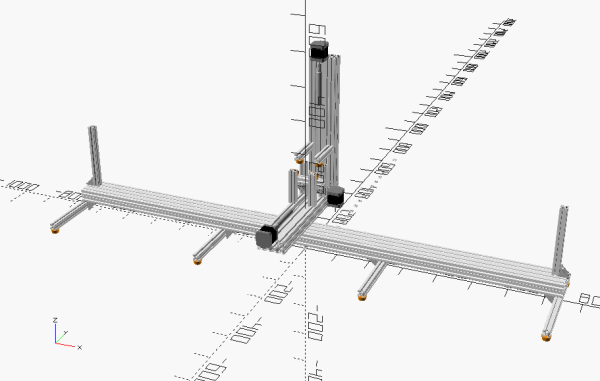

BeamCNC

[[https://www.indiegogo.com/projects/beamcnc-construction-system-cnc-mill#//BeamCNC crowdfunding campaign demonstration device]]

This minimalist design shares many common parts with 3D printers.

Parts

Part Quantity Supplier

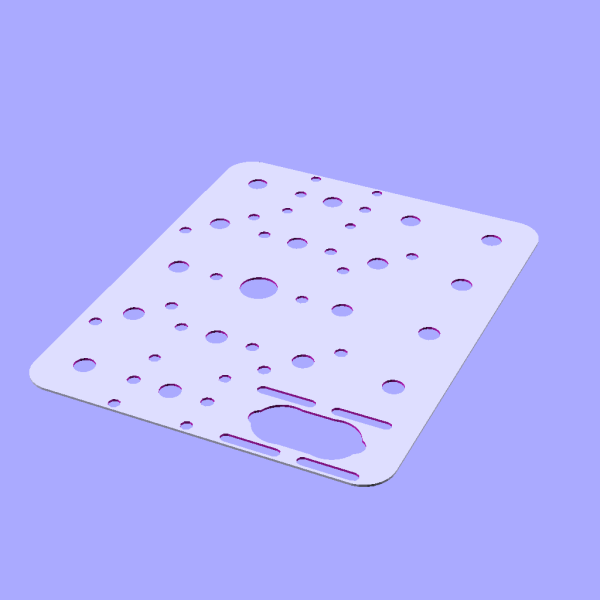

Plate - drill machine 2 OpenSCAD File

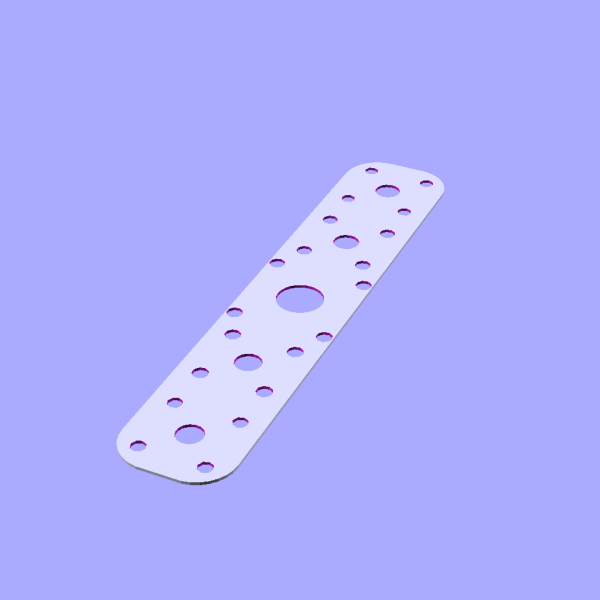

Plate - spindle 1 OpenSCAD File

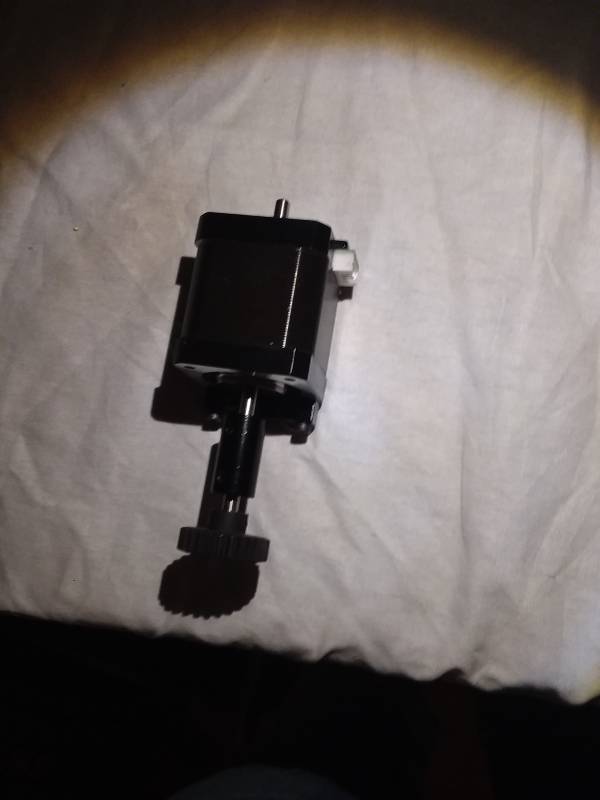

NEMA-17 stepper motor 3 Link
roller-raw-material 12 CAD File
Spindle 1 ER16 500W High Speed DC 48V Air Cooling Brushless Spindle Motor + Driver
LM8UU Bearing 1 - pack of 2 Amazon
Drive belt
Drive pulley
Controller
Neoprene foam w/ adhesive backing Amazon
Drill bit
Rail Guide Support for 16mm Diameter Shaft 1 - pack of 4 Amazon
Rail Guide Support for 8mm Diameter Shaft 1 - pack of 4 Amazon
350mm 8mm T8 Lead Screw Set Lead Screw+ Copper Nut + Coupler + Pillow Bearing Block 2 Amazon
Oilite drill bushing 2 Mcmaster

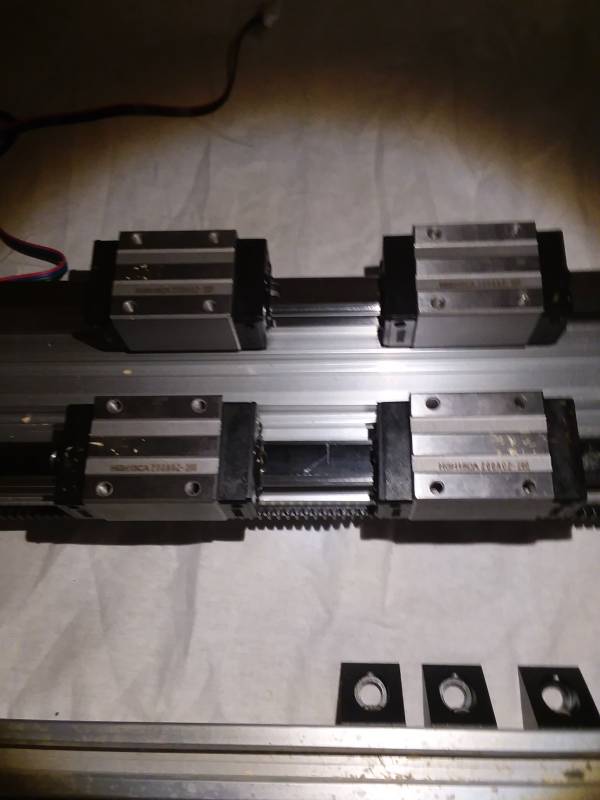

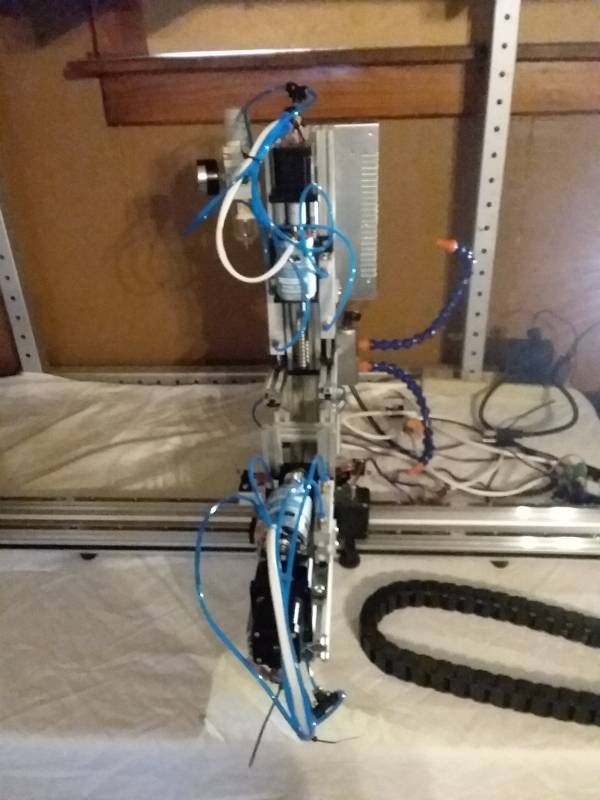

Avid CNC 60120 Pro

Fully automated production development kit

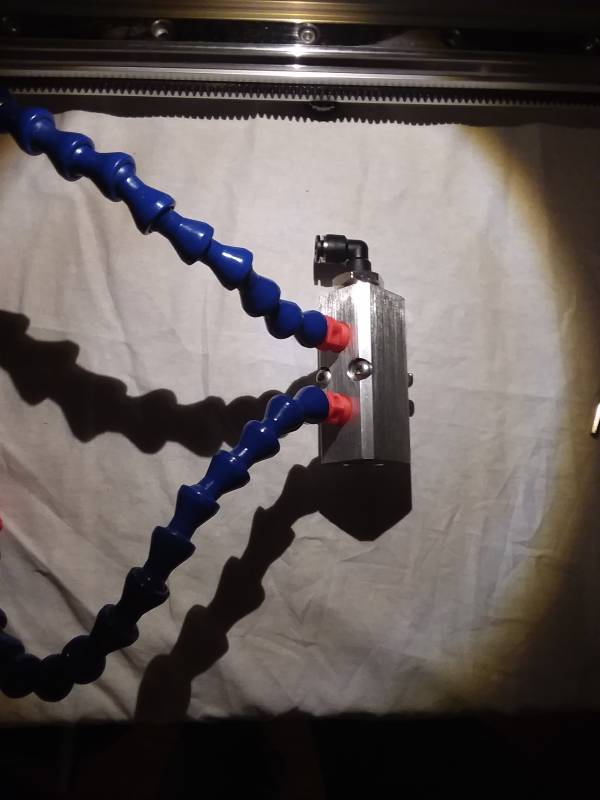

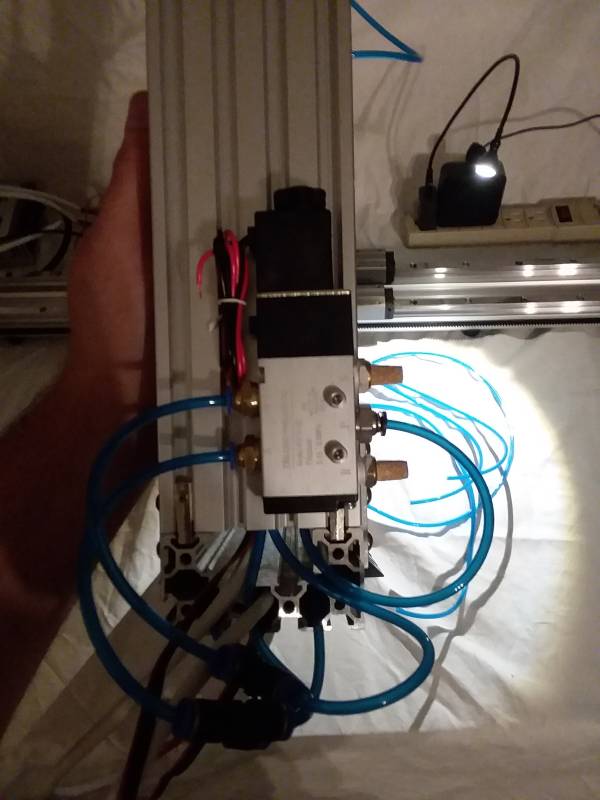

Pneumatic parts

Tools

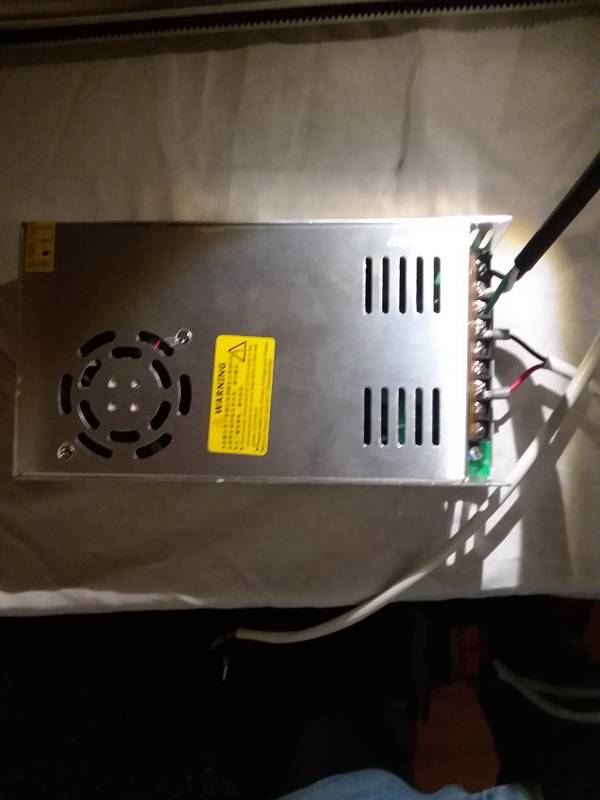

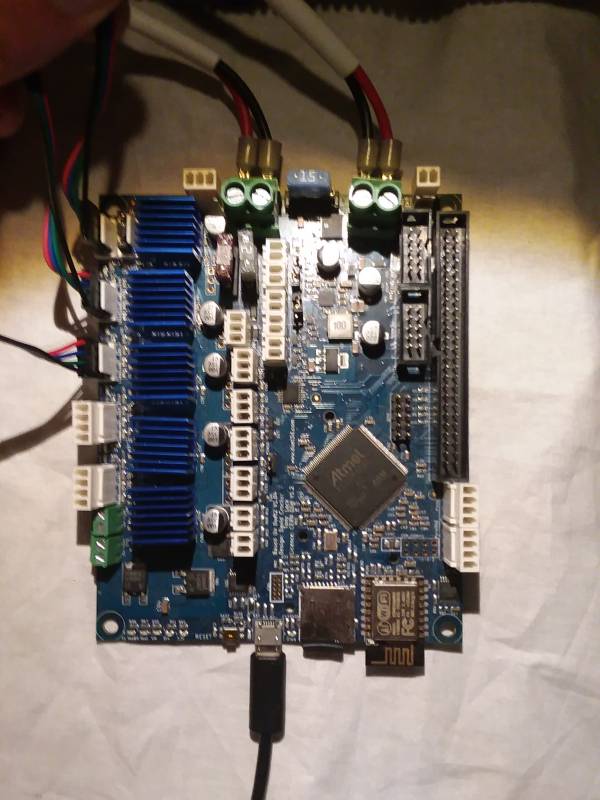

Electrical

Villagekit Grid-bot

https://github.com/villagekit/grid-bot

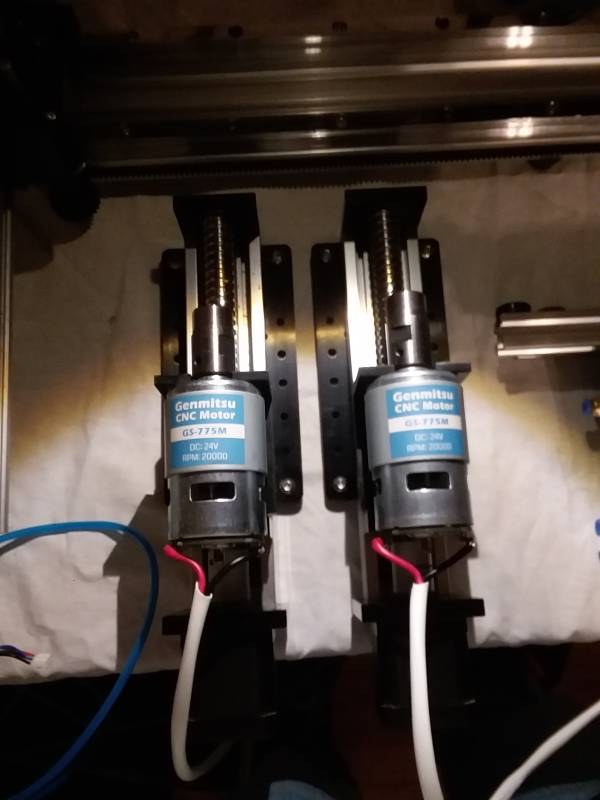

A multi-spindle single-axis CNC.

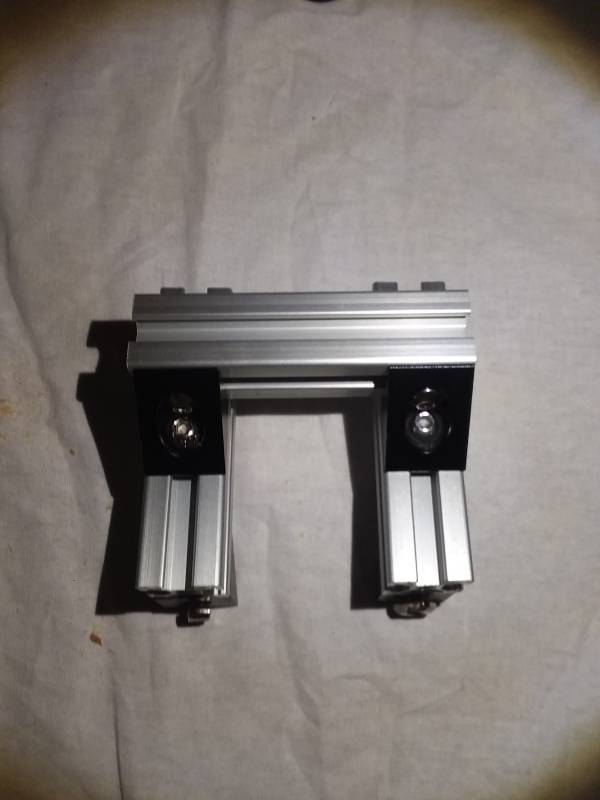

For the framing, we'll use 8040 aluminium extrusion since it's fit for purpose and readily available here in New Zealand.

Where possible, we'll try to use motion control components found in “pro” consumer CNC machines (AvidCNC, RoverCNC, QueenBee, etc), e.g. stepper motors, lead screws, linear rails, etc.

References
